※Product Category:400Series >> EC-400 Electrochemical oxygen analyzer Source：www.tgking.net |
|
|
新建网页 2
|
|
|
 |

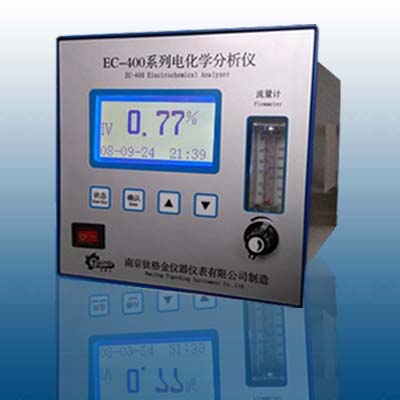

The EC-400 electrochemical oxygen analyzer is an online analyzer that
uses a new type of |
|
intelligent detection
instrument combined with imported sensors and a single chip computer,
with |
|
a% display. It is widely used
for the detection of oxygen content in industrial production |
|
processes such as air
separation and nitrogen production, fertilizer, petrochemical industry,
and |
|
biological fermentation. The
fuel pool oxygen sensor is composed of highly active oxygen |
|
electrodes and lead electrodes,
which are immersed in a KOH solution. Using this method for |
|
oxygen measurement, the
electrochemical oxygen analyzer can be unaffected by the reducing gas
|
|
in the measured gas,
eliminating many sample gas processing systems. |
|
◆
The instrument adopts a new imported fuel cell oxygen sensor |
|
◆
The instrument adopts a large screen LCD display screen with full Chinese
operation menu |
|
◆
Real time clock display, with 64 paperless data records and storage in
the background |
|
◆
Fast measurement speed, simple user calibration and debugging，Available
standard gas for online calibration |
|
◆ The sensor is not
interfered by impurities such as H2, CO, CO2, H2S, NOx, etc |
|
◆
The output current is 4-20mA, which can be connected to a PLC |
|
◆
Upper and lower limit alarm points can be set, with alarm contact
output |
|
|
|
Measurement range: 0~25.0%
O2 (other ranges can be customized, three digit LCD display in Chinese,
imported sensor) |
|
Basic error: ± 1.0% FS |
Repeatability: ± 1.0% FS |
|
Response time: T90 ≤ 5
seconds T99.5 ≤ 40 seconds |
Sample gas flow control:
250-300ml/min |
|
Sensor life:>2 years under normal use |
Power supply: AC
220V+10%; 50Hz |
|
Environmental conditions:
0-50 ℃; Relative humidity<90% |
Shell protection: metal shell sprayed with plastic |
|
Alarm setting: Any setting
within 0~100% (contact capacity 220V/1A) |
Power consumption: less
than 15W, fuse 3A |
|
Overall dimension:
145×145×250mm (wide × high × Depth)
|
Hole size：138×138mm（wide
× high） |
|
Output signal: 4-20mA (load
resistance less than 750 Ω), gear I: 0-2.5%, gear II: 0-10%, gear III:
0-25%, gear IV: 80-100% |
|
If a built-in sampling pump is added：Maximum
pumping force: 10Kpa, maximum sampling flow rate: 2000ml/min |
|
Temperature compensation
:
AD590 Temperature Module |
|
Expandable accessories :
built-in sampling pump, water vapor separation bottle, dust filter, gas
sampler |
|
|
