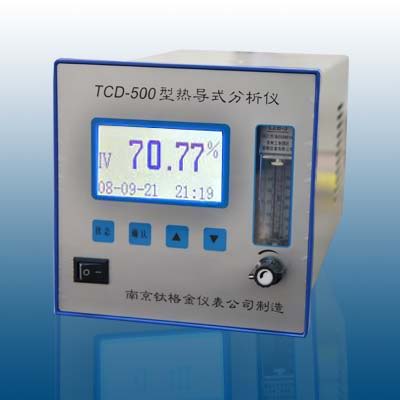

TCD-500 thermal
conductivity hydrogen analyzer works by taking advantage of the
difference between |
|
the thermal conductivity
coefficient of the component to be analyzed and the background
component, |
|
and the characteristic that the
thermal conductivity of the mixed gas changes with the change of the
|
|
analysis component. The online
analyzer composed of thermal conductivity gas sensor and intelligent
|
|
signal converter has the
characteristics of wide range of data to be measured, good stability and
short |
|
response time, TCD-500 thermal
conductivity hydrogen analyzer is used for automatic analysis of |
|
hydrogen content in
non-explosion-proof occasions. This instrument is applicable to online
analysis of |
|
hydrogen content in the
production process of fertilizer plants, generator cooling units,
cracking gas |
|
and other industries. |
|
|
|
Measuring range:0.00%－99.99％H2（128×64
LCD display） |
Basic error :≤±1.0%FS |
|
Response time : T90小于10S |
Repetitiveness : ≤±0.1%FS |
|
Display resolution : 0.01% |
Built-in storage :
64twig |
|
Sample gas pressure：10kpa～0.5Mpa |
Measuring medium：Mixture
containing H2 |
|
Temp Accuracy :45
℃ ± 0.5
℃ |
Sample gas temperature：0～45℃ |
|
Voltage﹕AC220V + 10%; 50Hz |
Environment condition﹕0—45℃;
relative humidity<
90% |
|
Enclosure protection：Metal
shell painting |
Power dissipation : AC220V，
＜150W，fuse3A |
|
Overall dimension：145mm×145mm×300（wide × high × deep） |
Hole size：138mm×138mm（wide
× high） |
|
Service life：>24 months（Normal service conditions） |
Instrument weight：4kg |
|
Output signal:4-20mA (Load resistance＜750Ω),输出档位:Ⅰ：0～5%、Ⅱ：0～10%、Ⅲ：0～30%、Ⅳ：30～80%、Ⅴ：0～100%H2 |
|
Alarm setting :
Any setting within 0.00% - 99.99% of the upper or lower alarm limit |
